Shimano Ledge Runner System Guide

Shimano Ledge Runner Lures lined up from left to right in an assortment of colors with black water in the background.

Loading... 285 view(s)

Shimano’s new Ledge Runner System may revolutionize the way we troll deep diving style plugs for offshore Pelagics. Traditionally, the short corners of your trolling spread are reserved for your deep diving plugs to prevent tangling with your other conventional lures. Now, with Ledge Runner’s new ADR, you can troll 4 deep diving plugs at once without any worries of tangling or fouling provided that you follow the system approach.

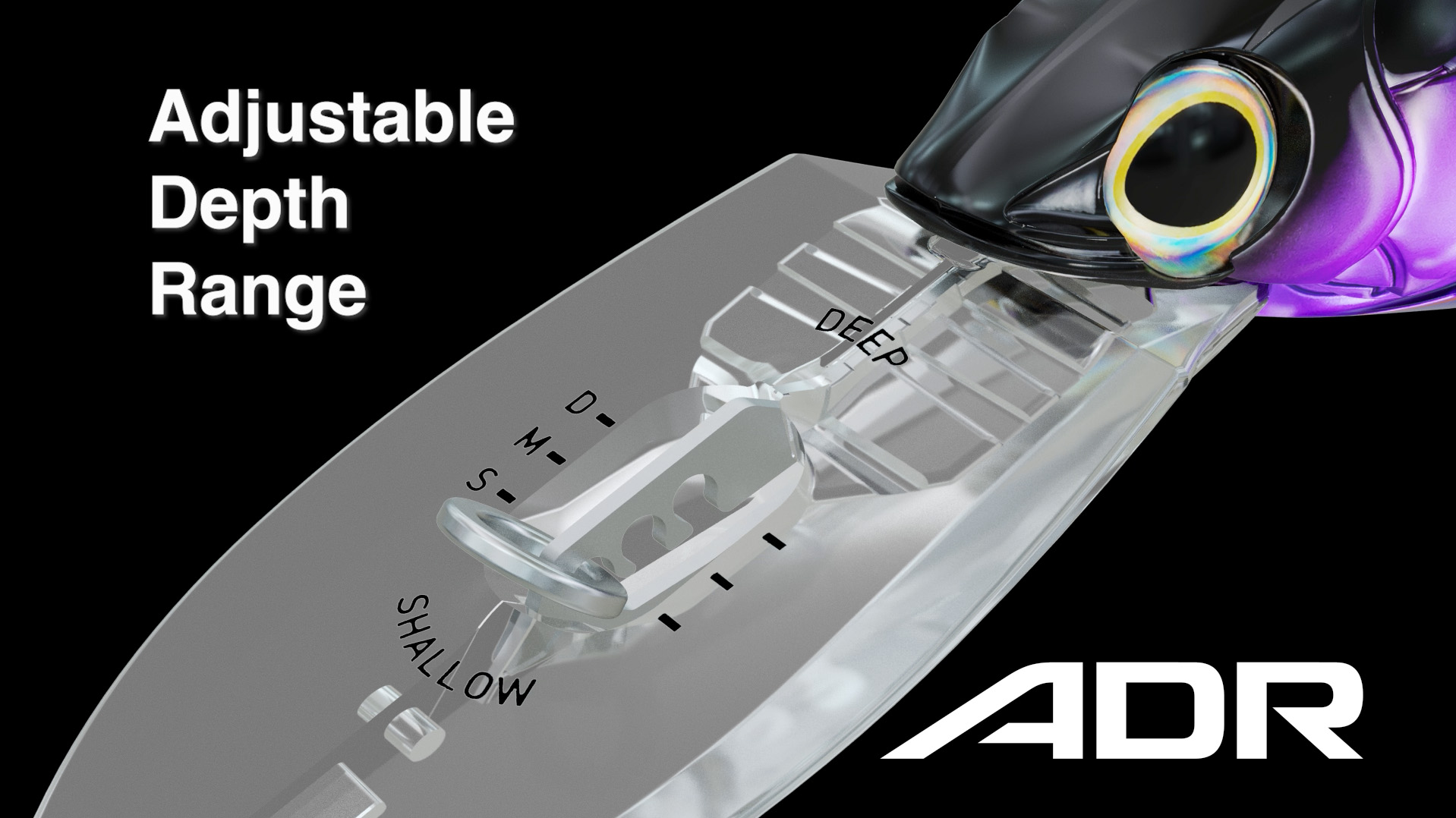

Shimano Ledge Runner Adjustable Depth Range Diagram showing clear lure bib with depth range options from deep to shallow.

Ledge Runner features a Lip design that incorporates the patented technology, ADR (Adjustable Depth Range) allowing seamless shifting of the pivot or tow point from shallow to deep without the use of any tools or having to re-rig. This system allows you to tailor your lures to the depths that you feel will be most productive and prevent tangles through a staggered lure approach. The second crucial feature is the HCW (Hydro Control Wing) a feature that ensures the lure swims straight even at high speeds. This lateral line down the lure changes the water flow over the lure giving enhanced stability when other lures would get erratic and blow out.

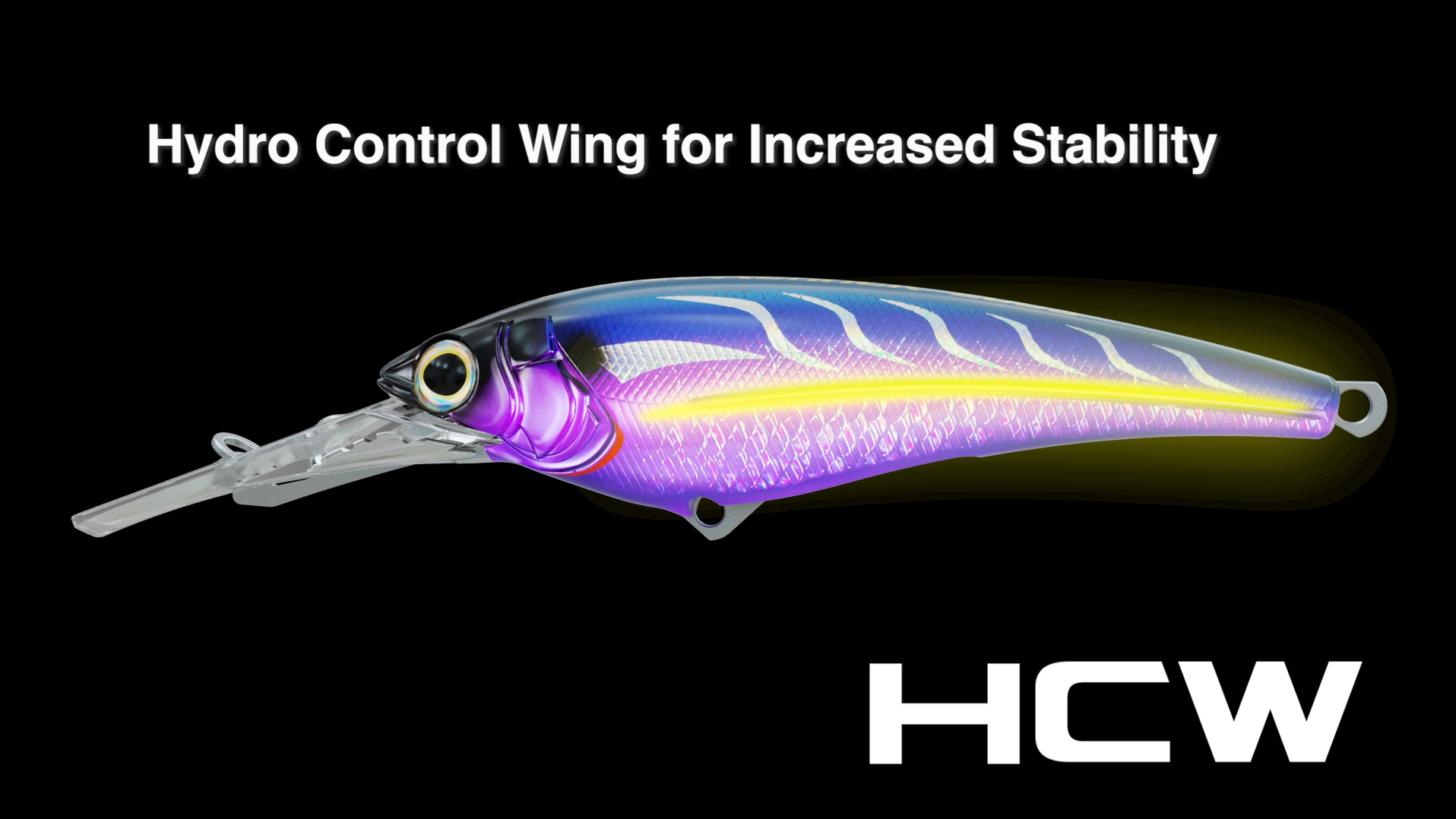

Shimano Ledge Runner Hydro Control Wing for increased stability diagram showing side portrait of blue and purple lure with side wing highlighted in yellow.

Matching the Ledge Runner with Power Pro Depth Hunter will give you precise lure position placement within your spread. Anglers of all skill levels now have the tools to quickly and accurately place your lure not only in the right position in your pattern to avoid tangles when making turns while trolling but also at different depths in your pattern. On the larger 200mm Ledge Runner Lures, we recommend 80lb or 100lb Depth-Hunter attached to 25ft of 130lb or 150lb Wind on leader Crimped straight to the Ring. For the 160mm Ledge Runner Lures, we recommend 50lb or 65lb Depth-Hunter with a 25ft wind-on leader of 130lb test.

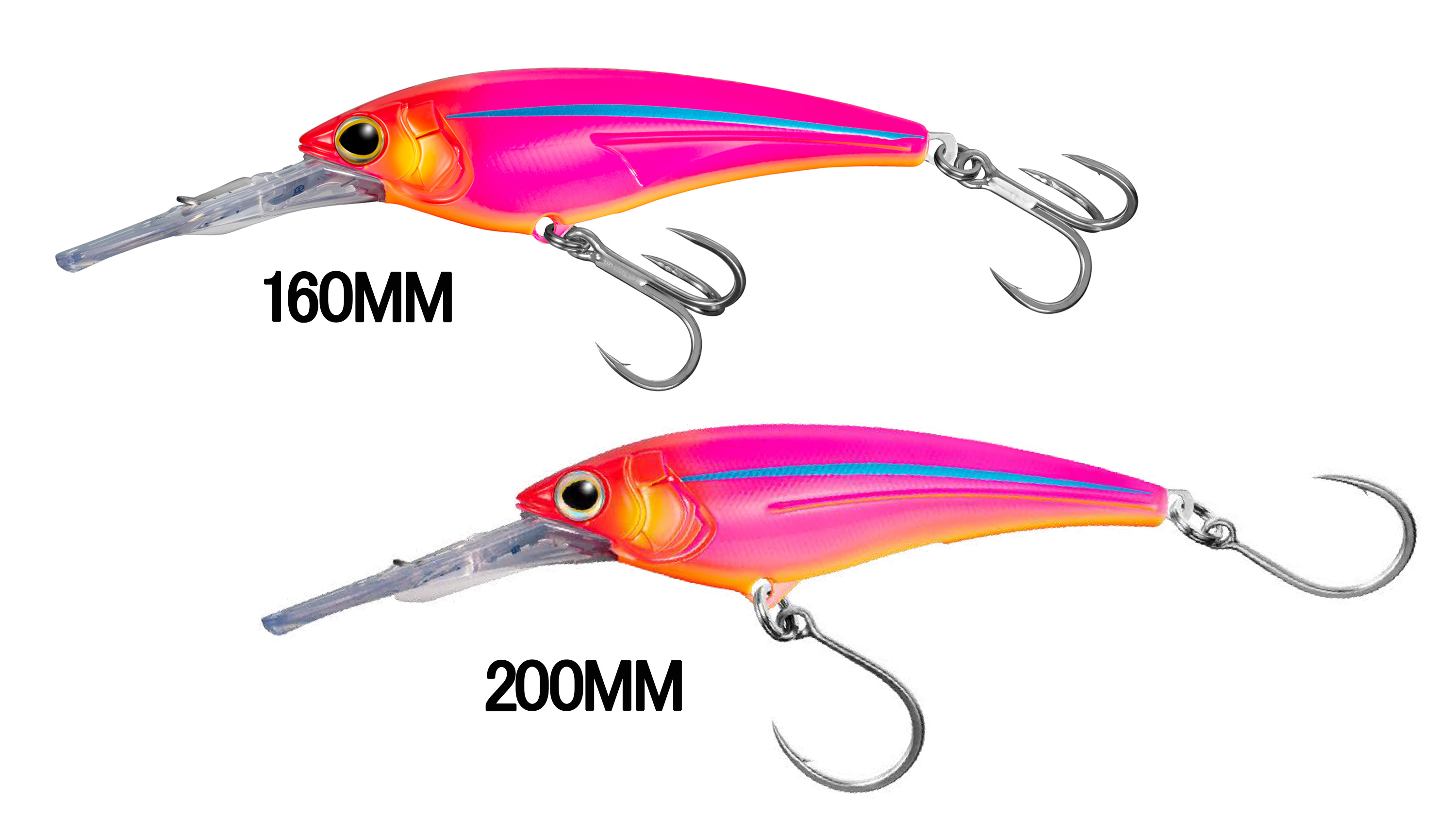

The Shimano Ledge Runners Lures in both 160mm and 200mm in Mai Tai color, both containing pink and red bodies with clear bibs. The 160mm lure has two treble hooks while the 200mm features two single hooks.

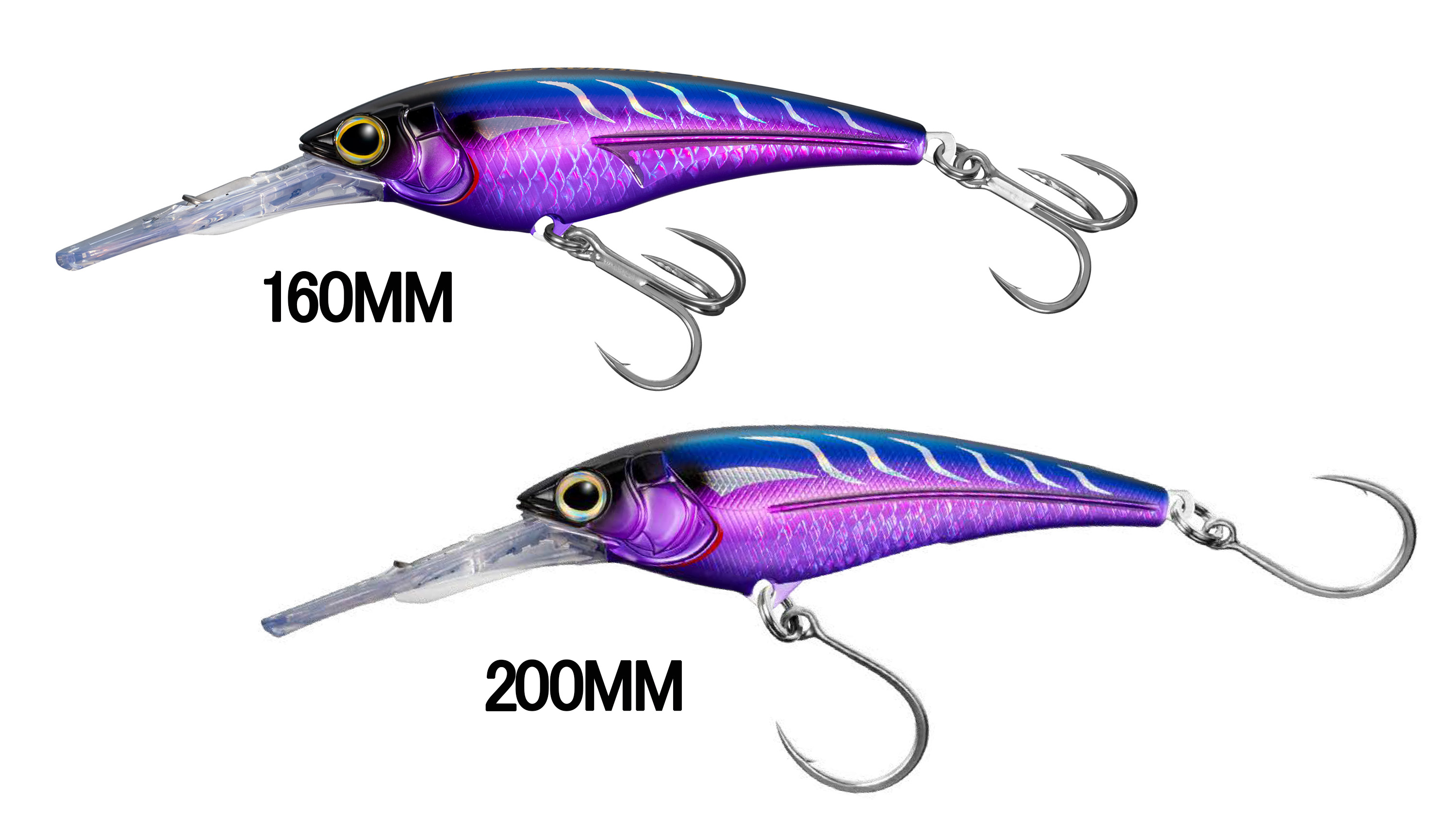

The Shimano Ledge Runners Lures in both 160mm and 200mm in Amethyst color, both containing purple and blue bodies with clear bibs. The 160mm lure has two treble hooks while the 200mm features two single hooks.

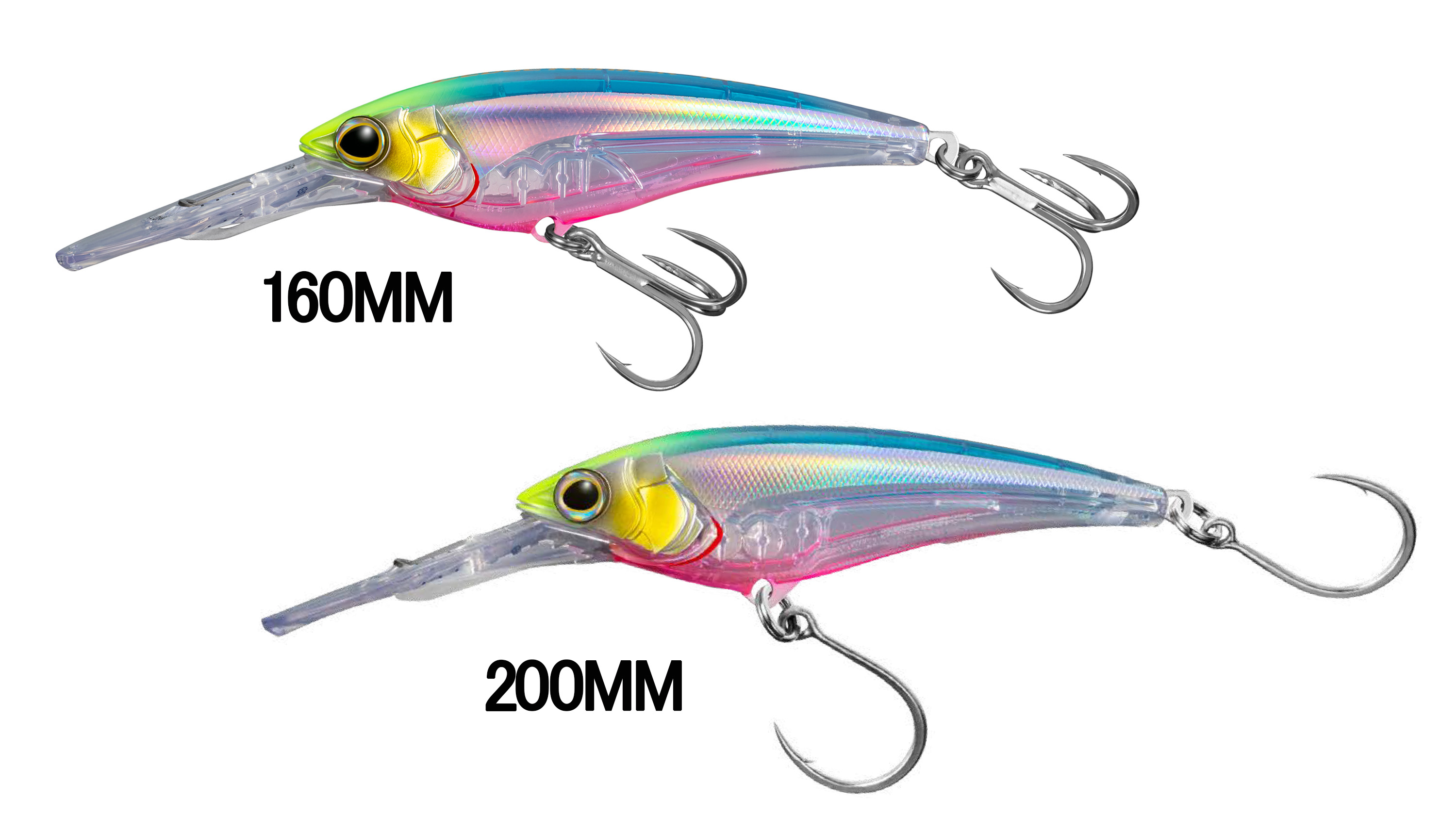

The Shimano Ledge Runners Lures in both 160mm and 200mm in lightshow, both containing clear bibs. The 160mm lure has two treble hooks while the 200mm features two single hooks.

The Hardware

REELS

Ledge Runner 200 Size:

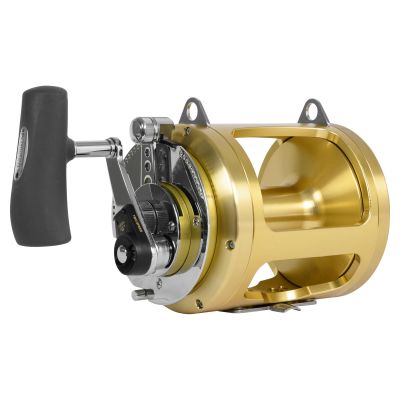

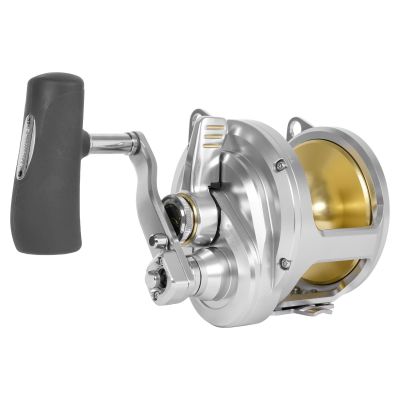

- Shimano Talica TAC40IIA 2-Speed Lever Drag Conventional Reel
Ledge Runner 160 Size:

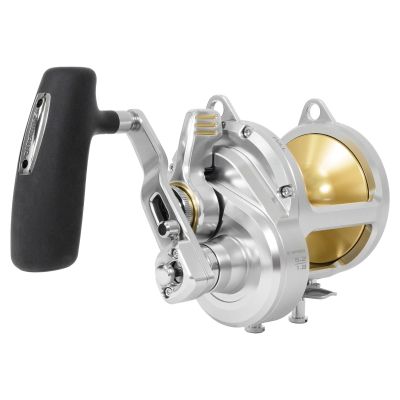

- Shimano Talica TAC25IIA 2-Speed Lever Drag Conventional Reel

RODS

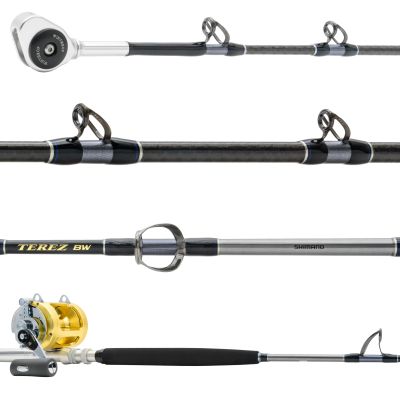

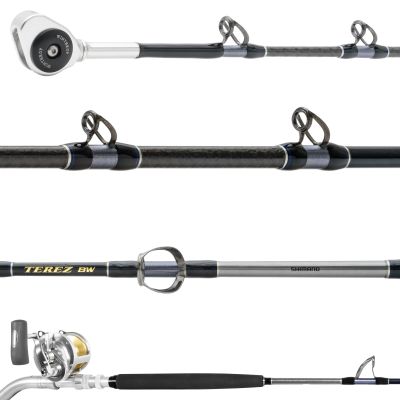

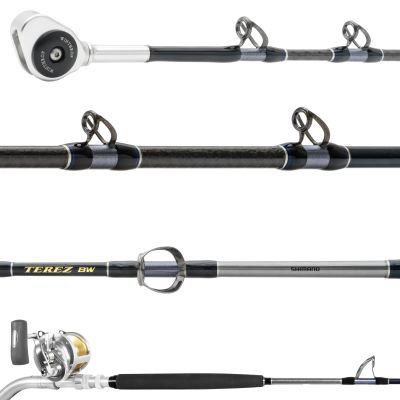

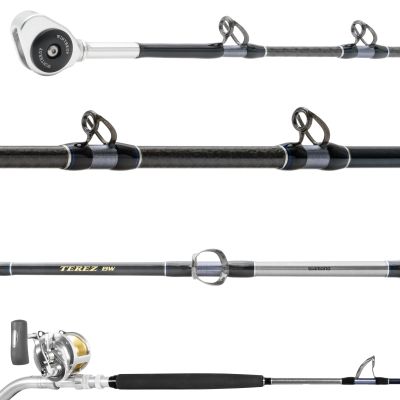

Shimano Terez BW TZBWHS57HA High Speed Trolling Conventional Rod Blade
- If you need clearance for outboards:

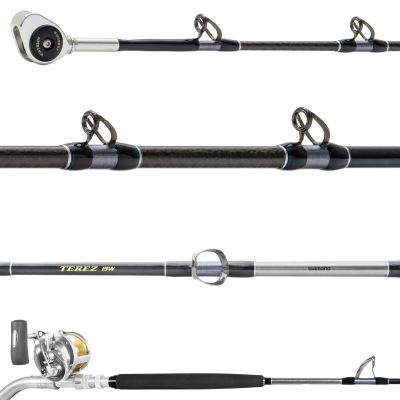

  Shimano Terez BW TZBWHS68HA High Speed Trolling Conventional Rod Blade

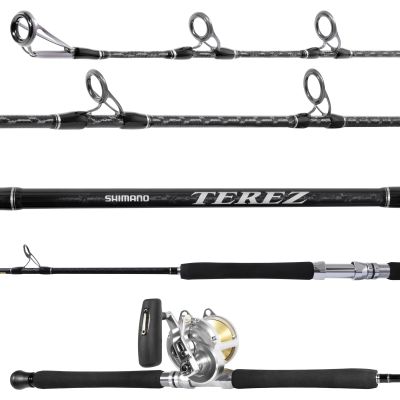

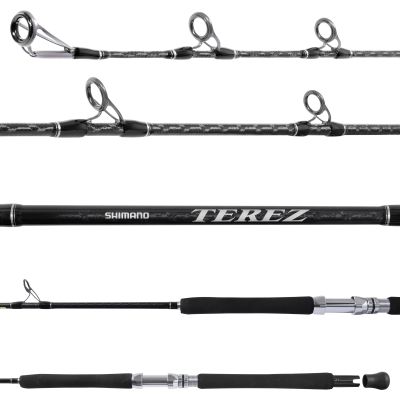

Shimano Terez TZC70H Casting Rod

LINE

Talica 40: 80lb Power Pro Depth Hunter with 25ft of 130lb or 150lb flourocarbon wind-on leader
Talica 25II:Power Pro Depth Hunter w/25ft of 130# Fluorocarbon wind-on leader

How The System Works

Running your Talica 40’s off the short corners with the ledge Runner 200’s your choice of color.

Right rod out 1 color (25ft) plus wind-on set on Deep ADR setting
Left rod out 2 colors(50ft) plus wind-on set on Medium/Deep ADR setting.

Long position is Talica 25’s with the Ledge Runner 160’s your choice of color.

Right long position out 3 colors (75ft) plus wind-on set on Medium or Deep ADR setting.
Left long position out 4 colors (100ft) plus wind-on set on Shallow ADR setting.

If you want to learn more about the Ledge Runner System please call our Sales line at (714) 507-4177.

WAHOO

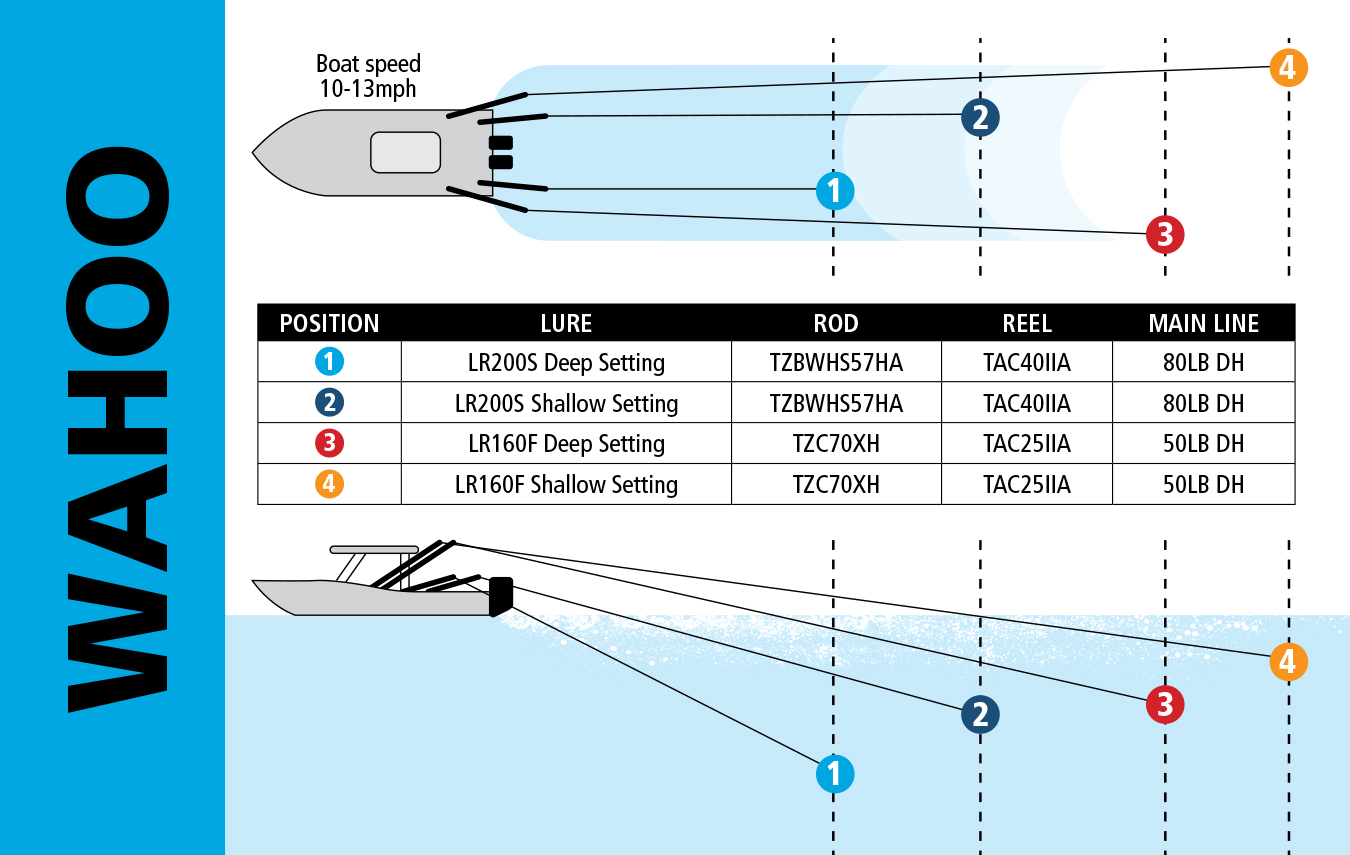

Ledge Runner trolling position diagram featuring boats on the left labeled boat speed 10-13mph with four trailing line positions to the right labeled 1 in blue, 2 in dark blue, 3 in red, and 4 in yellow. See following chart for image information.

Fishing Gear Setup by Position
Position	Lure	Rod	Reel	Main Line
1	LR200S Deep Setting	TZBWHS57HA	TAC40IIA	80 lb DH
2	LR200S Shallow Setting	TZBWHS57HA	TAC40IIA	80 lb DH
3	LR160F Deep Setting	TZC70XH	TAC25IIA	50 lb DH
4	LR160F Shallow Setting	TZC70XH	TAC25IIA	50 lb DH

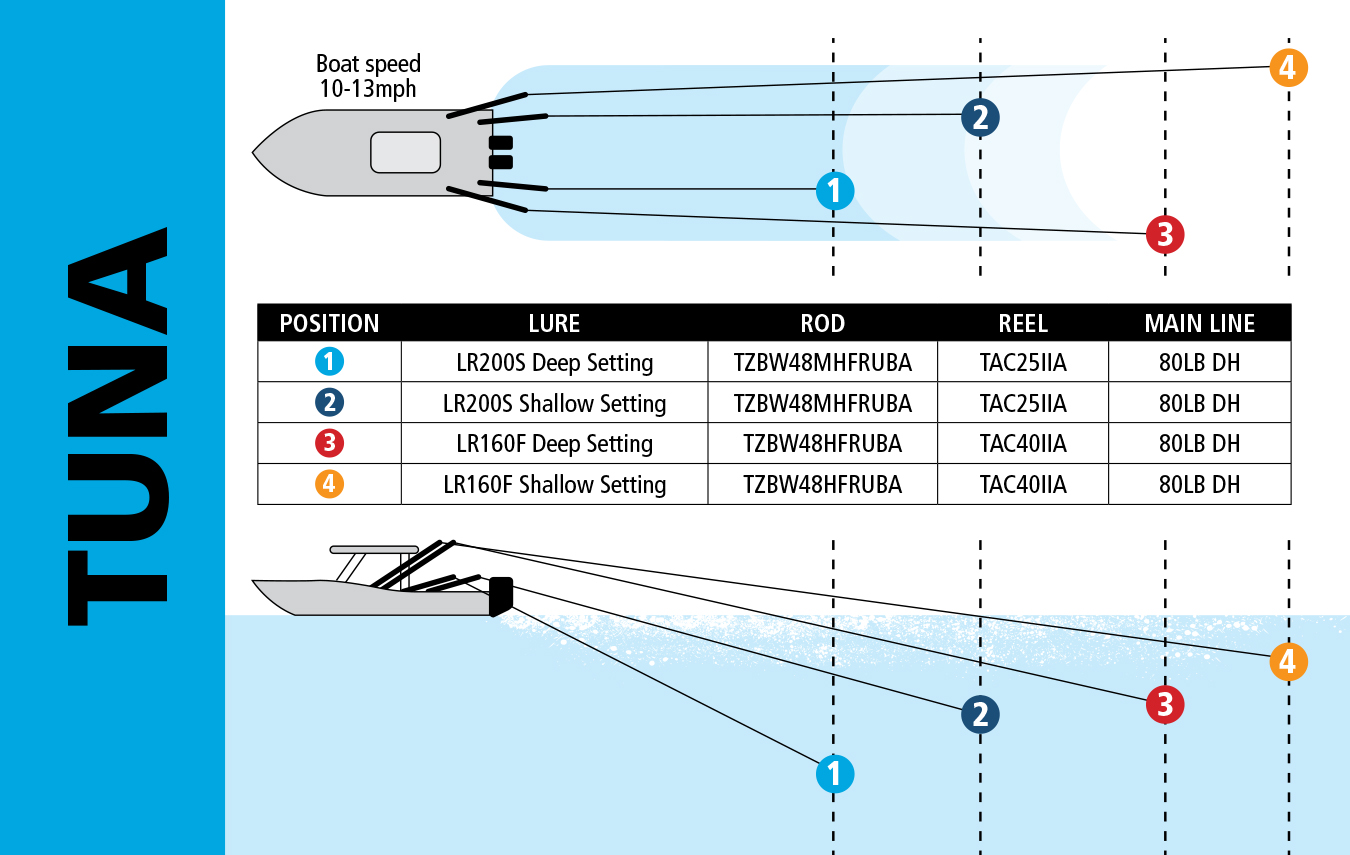

TUNA

Fishing Gear Setup by Position
Position	Lure	Rod	Reel	Main Line
1	LR200S Deep Setting	TZBW48MHFRUBA	TAC25IIA	80 lb DH
2	LR200S Shallow Setting	TZBW48MHFRUBA	TAC25IIA	80 lb DH
3	LR160F Deep Setting	TZBW48HFRUBA	TAC40IIA	80 lb DH
4	LR160F Shallow Setting	TZBW48HFRUBA	TAC40IIA	80 lb DH
